GEDA 300 Z/ZP

Compare

The “baby” among the GEDA transport platforms features a range of benefits. When folded, the GEDA 300 Z/ZP is only 0.85 m wide, allowing easy transport to the construction site – even through narrow driveways. With the convenient fork lift pockets, the complete device can easily be transported with a pallet truck or fork lift truck.

Once at the construction site, the GEDA 300 Z/ZP reveals its true size: its compact 1.35 x 0.95 m platform and the flat cable bin can be set up even on the narrowest pavements and in the smallest courtyards.

The two separate controls quickly turn the material hoist into a transport platform which is also approved for transporting up to three passengers.

In addition to the 400 V model, the device is also available as a 230 V version. The 230 V hoist can simply be connected to the existing power supply without requiring a separate high-voltage connection. This is often a great advantage, especially when renovating older buildings.









Logo GEDA Central
GEDA CENTRAL is an intelligent online-platform for digital services for your GEDA hoists
Learn more Register

prev
next
Product highlights
GEDA UNI-X-MAST System

An ingenious system: can be used on all GEDA rack and pinion hoists from 300 kg to 2,200 kg load capacity.

GEDA Corrosion Protection

The new GEDA all-round protection provides protection from corrosion and its consequential damage, maintains the functionality of components and extends their operating life.

Space saver

Perfect for narrow construction sites, thanks to folding platform and flat cable bin.

Automatic lubrication device standard

The automatic lubrication system reduces maintenance costs.

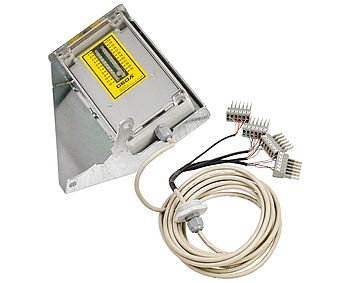

Diagnostic system

The useful diagnostic system provides quicker and easier identification of errors.

Tear off securing for flat cable standard

Limit switch to prevent trailing cable rupture.

Uniaxial trailer

A trailer is optionally available for road transport. It's easy to load and unload using the transport platform drive.

Useful scaffold bracket

A special bracket enables hazard-free transport of longer scaffold elements.

Complies with EN 16719

GEDA is already perfectly positioned for implementing the requirements of the new EN 16719 standard, which will from now on apply to transport platforms.

GEDA POWER GREASE

The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges.

MAKE YOUR HOIST SMART

GEDA Transport Platforms are READY for the new GEDA Machine Management! Enter the digital world of GEDA!



Technical Data Refresh
Cargo Persons and material
Mast system GEDA UNI-X-MAST
Load capacity (material) 500 kg
Load capacity (persons) 3 Persons
Lifting height 50 m
Lifting speed 12 m/min
Power supply 1.9 kW / 400 V / 50 Hz / 16 A
Platform dimension 0.95 m x 1.35 m x 1.1 m / 1.8 m
