Art. No. 01212 Additional equipment
Pictures can be different

Art. No. 01217 Additional equipment
Pictures can be different

Art. No. 01268 Additional equipment
Pictures can be different

Art. No. 41441 Additional equipment
Pictures can be different

Height 2.1 m
GEDA MULTILIFT P6 GEDA MULTILIFT P12 GEDA MULTILIFT P18 GEDA MULTILIFT P22 GEDA PH 2737 GEDA PH 3240 GEDA BL 2000 P
Art. No. 41442 Additional equipment
Pictures can be different

Height 1.8 m
GEDA MULTILIFT P6 GEDA MULTILIFT P12 GEDA MULTILIFT P18 GEDA MULTILIFT P22 GEDA PH 2737 GEDA PH 3240 GEDA BL 2000 P
Art. No. 63609 Equipment for the base unit
Pictures can be different

Cable set 25 m lifting height
Art. No. 63610 Equipment for the base unit
Pictures can be different

Cable set 50 m lifting height
Art. No. 63611 Equipment for the base unit
Pictures can be different

Cable set 100 m lifting height
Art. No. 63612 Equipment for the base unit
Pictures can be different

Cable set 150 m lifting height
Art. No. 63613 Equipment for the base unit
Pictures can be different

Cable set 200 m lifting height
Art. No. 63614 Equipment for the base unit
Pictures can be different

Cable set 250 m lifting height
Art. No. 63615 Equipment for the base unit
Pictures can be different

Cable set 75 m lifting height
Art. No. 63616 Equipment for the base unit
Pictures can be different

Cable set 125 m lifting height
Art. No. 63617 Equipment for the base unit
Pictures can be different

Cable set 175 m lifting height
Art. No. 63618 Equipment for the base unit
Pictures can be different

Cable set 225 m lifting height
Art. No. 63649 Equipment for the base unit
Pictures can be different

Cable set 25 m lifting height pluggable
Art. No. 63650 Equipment for the base unit
Pictures can be different

Cable set 50 m lifting height pluggable
Art. No. 63651 Equipment for the base unit
Pictures can be different

Cable set 100 m lifting height pluggable
Art. No. 63652 Equipment for the base unit
Pictures can be different

Cable set 150 m lifting height pluggable
Art. No. 63653 Equipment for the base unit
Pictures can be different

Cable set 200 m lifting height pluggable
Art. No. 63654 Equipment for the base unit
Pictures can be different

Cable set 250 m lifting height pluggable
Art. No. 63655 Equipment for the base unit
Pictures can be different

Cable set 75 m lifting height pluggable
Art. No. 63656 Equipment for the base unit
Pictures can be different

Cable set 125 m lifting height pluggable
Art. No. 63657 Equipment for the base unit
Pictures can be different

Cable set 175 m lifting height pluggable
Art. No. 63658 Equipment for the base unit
Pictures can be different

Cable set 225 m lifting height pluggable
Art. No. 66100 Accessories
Pictures can be different

Initial lubrication set (2 cartridge and 1 brush)
Grease for EXTREME applications.
Black adhesive grease, mineral oilbased, with high solid-lubricant content.
0 °C up to +70 °C
GEDA 200 Z GEDA 300 Z Boiler Hoist GEDA 200 Z COMFORT GEDA 3700 Z/ZP GEDA PH 2737 GEDA PH 3240 GEDA SBL 2000 GEDA MCP 750 GEDA MCP 1500 GEDA 3700 ZP P GEDA BL 2000 P
Art. No. 66101 Accessories
Pictures can be different

Initial lubrication set (2 cartridges and 1 brush)
Low temperature grease for MEDIUM and EXTREME applications.
Black, semi-synthetic low-temperature adhesive grease with solid-lubricant content.
-30 °C up to +10 °C
GEDA 200 Z GEDA 300 Z Boiler Hoist GEDA 3700 Z/ZP GEDA PH 2737 GEDA PH 3240 GEDA SBL 2000 GEDA MCP 750 GEDA MCP 1500 GEDA 3700 ZP P GEDA BL 2000 P
Art. No. 66602 Accessories
Pictures can be different

Special cartridge (400 g)
Grease for MEDIUM applications.
Black adhesive grease, mineral oilbased, with medium solid-lubricant content.
-10 °C up to +70 °C
Art. No. 66603 Accessories
Pictures can be different

Special cartridge (400 g)
Low temperature grease for MEDIUM and EXTREME applications.
Black, semi-synthetic low-temperature adhesive grease with solid-lubricant content.
-30 °C up to +10 °C
GEDA 3700 Z/ZP GEDA PH 2737 GEDA PH 3240 GEDA 3700 ZP P GEDA BL 2000 P
Art. No. 68302 Landing level safety system
Pictures can be different

Sheet metal panel for landing level safety gate "Comfort"
Art. No. 68310 Landing level safety system
Pictures can be different

Sheet metal panel for landing level safety gate "Standard/Standard-Basic"

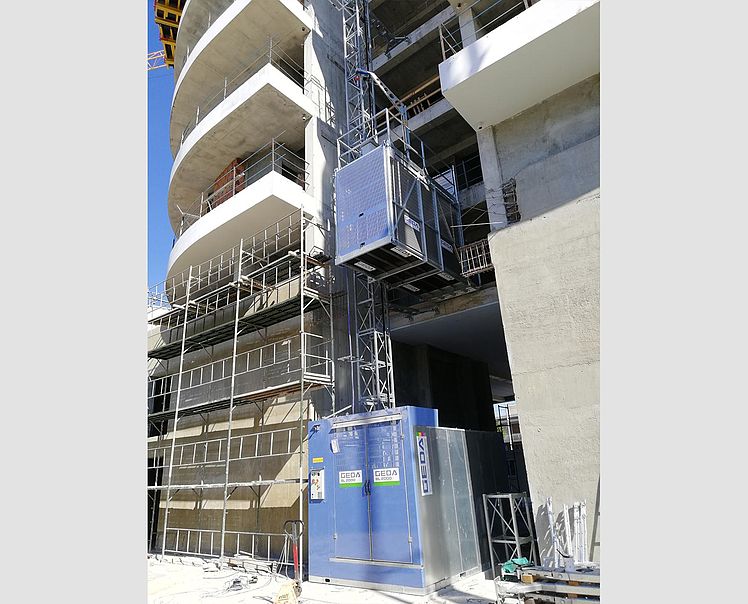

GEDA BL 2000
Wherever heavy loads have to be transported to great heights, the new GEDA BL 2000 ensures the necessary efficiency in the construction process. The person and material hoist has a load capacity of 2,000 kg or 23 people and a lifting speed of 55 m/min and the new power pack from GEDA is available as a single and twin variant. The platform size of 1.45 x 3.20 x 2.10 metres also enables the transportation of bulky goods up to a lifting height of 250 metres. To make the hoist even more convenient and user-friendly, it has been equipped with comprehensive state-of-the-art control variants.
The GEDA BL 2000 is available in two variants, a Standard and a Premium model.
The Premium version scores highly with a range of additional features. For example, the history of the actions performed on the hoist, such as start and stop time, error messages, load per journey etc. can be retrieved. Depending on the conditions at the construction site or on individual customer requirements, the GEDA BL 2000 Premium can be switched flexibly via the display from 2000 kg with 63 amperes to 1300 kg with 32 amperes enabling the hoist to be used for many different purposes.
A visible wind sensor is integrated into the display. This ensures that if the wind conditions are too strong the hoist is moved automatically to the ground station, an additional safety feature in particular for coastal construction sites.
If the hoist does not move after a customisable pre-defined period the device automatically returns to the ground station. The Premium Edition can also be used as a pure material hoist which means that the different landing levels are also accessible without any operating staff in the car. The option for remote maintenance and remote access on the hoist rounds off the Premium package.
As an option the new GEDA BL 2000 can also be equipped with an automatic lubrication device, an access or finger print system as well as car heating.





The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges.
Cargo | Persons and material |
Mast system | GEDA S-MAST |
Load capacity (material) | 2000 kg |
Load capacity (persons) | 23 Persons |
Lifting height | 250 m |
Lifting speed | |
Platform dimension |
1.45 m
|

































































Know-how in use To the References








Device | Technical details | Number of machines |
---|---|---|
GEDA BL 2000 |
Lifting height: 32 m Lifting speed: 55 m/min Load capacity: 2000 kg/23 persons |
1 |










Device | Technical details | Number of machines |
---|---|---|
GEDA BL 2000 |
Lifting height: 100 m |
2 |







Device | Technical details | Number of machines |
---|---|---|
GEDA 3700 Z/ZP |
Platform D |
1 |
GEDA BL 2000 |
Lifting height: 120 m |
2 |
GEDA 2 PK |
GEDA 2 PK - 120 m |
2 |







Device | Technical details | Number of machines |
---|---|---|
GEDA BL 2000 |
Lifting height: 50 m |
2 |








Device | Technical details | Number of machines |
---|---|---|
GEDA BL 2000 |
Lifting height: 48 m Lifting speed: 55 m/min Load capacity: 2000 kg/23 persons |
2 |








Device | Technical details | Number of machines |
---|---|---|
GEDA BL 2000 |
Lifting height: 52 m Lifting speed: 55 m/min Load capacity: 2000 kg/23 persons |
1 |







Device | Technical details | Number of machines |
---|---|---|
GEDA BL 2000 |
Lifting height: 68 m Lifting speed: 55 m/min Load capacity: 2000 kg/23 persons |
2 |










Device | Technical details | Number of machines |
---|---|---|
GEDA BL 2000 |
Lifting height: 220 m |
2 |









Device | Technical details | Number of machines |
---|---|---|
GEDA BL 2000 |
Lifting height: 55 m Lifting speed: 55 m/min Load capacity: 2000 kg/23 persons |
3 |






Device | Technical details | Number of machines |
---|---|---|
GEDA BL 2000 |
Lifting height: 30 m |
1 |







Device | Technical details | Number of machines |
---|---|---|
GEDA BL 2000 |
Lifting height: 15/21 m |
2 |






Device | Technical details | Number of machines |
---|---|---|
GEDA BL 2000 |
Lifting height: 60 m |
1 |






Device | Technical details | Number of machines |
---|---|---|
GEDA BL 2000 |
Lifting height: 54 m |
1 |
